ATC - Automatic Tool Change Spindle Motor

ATC Spindle Motor can use different tools automatically. WHD supplies Water Cooled 5.5 kW ATC Spindle, Water Cooled 7.5 kW ATC Spindle, and Air Cooled 9.0 kW ATC Spindle.

With over 20 years’ experience of producing and selling spindle motors, WHD provides High Speed Air Cooled Spindle Motor for CNC engraving and CNC wood routing.

With stabler function and better service,WHD spindle motors have been exported to USA, Europe,Brazil, India, Russia etc. all over the world.

Looking forward to cooperating with you soon.

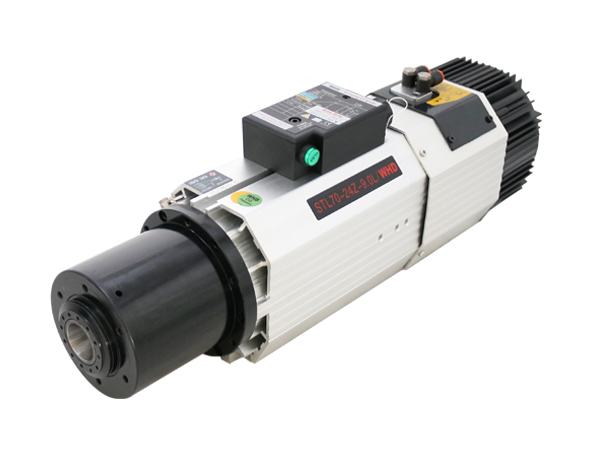

ATC Spindle Motor 9.0kW   Some Specifications:

Model

STL70-24Z-9.0L

Brand

WHD or OEM

Power

9.0kW

Speed

12000-24000rpm

Voltage

380V

Current

18.2A

Frequency

800Hz

Tool interface

ISO30

Numbers of Poles

4

Automation Grade

Automatic

Type of Cooling

Cooling Fan

Type of Insulation

F

Protection class

IP50

Weight of Long Nose version

32KG

Warranty

Half one year warranty for bearings

Others

It can replace HSD version

Applications:

· Woodworking

· Plastic Acrylic

· Light Metal Engraving like Aluminum, Copper.

Additional Information:

· Payment Terms: T/T

· Port of loading: Shanghai,China

· Package: Foam Box in Carton Box with Strong Strips across Carton Box.



Download attachments: ATC Spindle Motor 9.0kW
