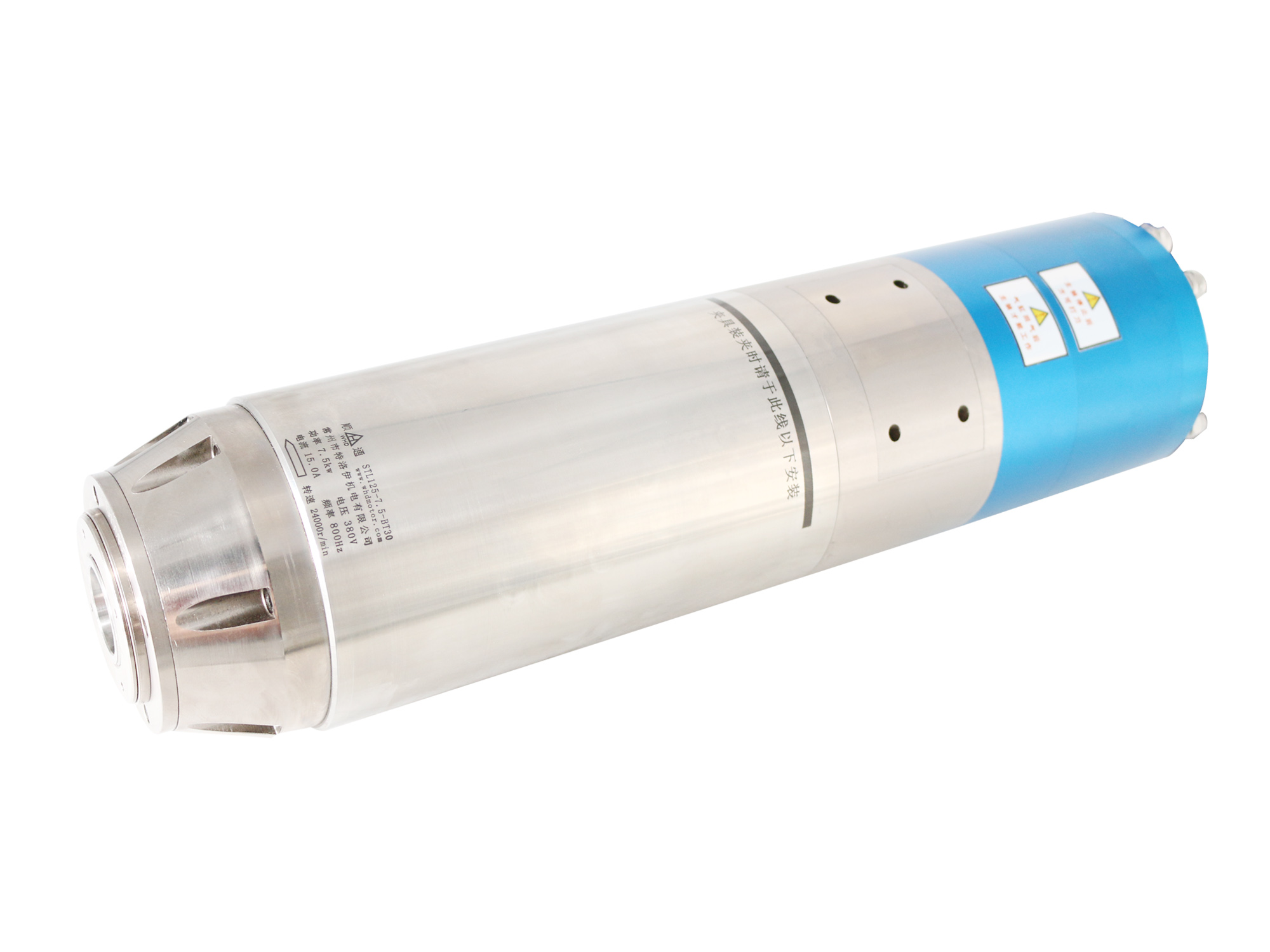

ATC - Automatic Tool Change Spindle Motor

ATC Spindle Motor can use different tools automatically. WHD supplies Water Cooled 5.5 kW ATC Spindle, Water Cooled 7.5 kW ATC Spindle, and Air Cooled 9.0 kW ATC Spindle.

With over 20 years’ experience of producing and selling spindle motors, WHD provides High Speed Water Cooled Spindle Motor for CNC engraving and CNC wood routing.


With stabler function and better service,WHD spindle motors have been exported to USA, Europe,Brazil, India, Russia etc. all over the world.

Looking forward to cooperating with you soon.

ATC Spindle Motor 7.5kW Some Specifications:

Model

STL125-24Z-7.5

Brand

WHD or OEM

Power

7.5kW

Speed

24000rpm

Voltage

380V

Current

14.3A

Frequency

800Hz

Tool interface

BT30

Numbers of Poles

4

Automation Grade

Automatic

Type of Cooling

Water

Type of Insulation

F

Protection class

IP54

Weight

27KG

Warranty

Half one year warranty for bearings

Applications:

· Woodworking

· Plastic Acrylic

· Light Metal Engraving like Aluminum, Copper.

Additional Information:

· Payment Terms: T/T

· Port of loading: Shanghai,China

· Package: Foam Box in Carton Box with Strong Strips across Carton Box.


Download attachments: ATC Spindle Motor 7.5kW
