Water Cooled Spindle Motor

As one leading producer of CNC Spindle Motor in China, WHD has over 20 years’ experience in producing and selling Water Cooled Spindle Motor, for kinds of CNC applications areas.

By now, our spindle motors have been exported to USA, Europe,Brazil, India, Russia etc. all over the world.

Looking forward to cooperating with you soon.

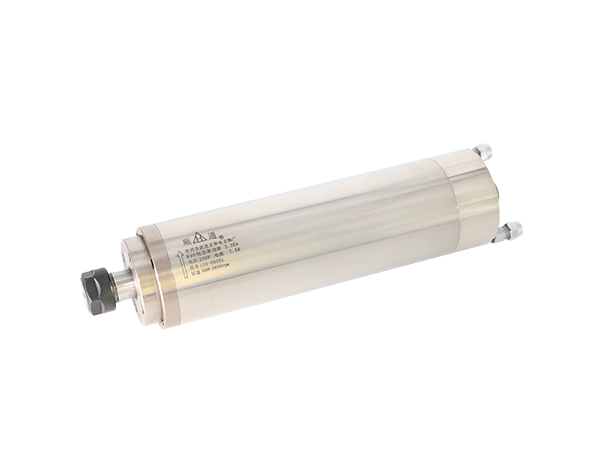

Water Cooled Spindle Motor 2.2kw for Metal
Model STM80-2.2
Power 2.2kW
Diameter φ80mm
Speed 3000-24000rpm
Voltage 380V/220V
Current 4.4A/7.6A
Frequency 100-800Hz
Joint of nose ER20(φ3.175-φ13)
Collet nut 3.175mm, 4mm,6mm,12.7mm
Cool Water cooling
Lub Grease
Brand

WHD or OEM

Phase 3
Torque 0.8Nm
Thermal class F
Protection class IP54
Weight 8.7KG

Water Cooled Spindle Motor for Metalworking More Specifications:

Type No.

Product Data

Joint of Nose

STM62-36Z/0.8

0.8 kw, 220V, 600 Hz, 36000 RPM

ER 11

STM62-24Z/0.8

0.8 kw, 220V, 400 Hz, 24000 RPM

ER 11

STM80-24Z/1.5

1.5 kw, 220V, 400 Hz, 24000 RPM

ER 16

STM80-24Z/2.2

2.2 kw, 220V, 400 Hz, 24000 RPM

ER 20

STM110-24Z/4.0

4.0 kw, 380V, 400 Hz, 24000 RPM

ER 25

STM125-24Z/4.5

4.5 kw, 380V, 400 Hz, 24000 RPM

ER 25

STM125-24Z/5.5Z

5.5 kw, 380V, 400 Hz, 24000 RPM

ER 25

STM125-18Z/7.5Z

7.5 kw, 380V, 600 Hz, 18000 RPM

ER 32

Applications:

· Metal Working

Additional Information:

· Payment Terms: T/T

· Port of loading: Shanghai,China

· Package: Foam Box in Carton Box with Strong Strips across Carton Box.
