Electric Spindle Customization Service | Tailored Solutions Just for You

Standard products not enough? We're here to tackle your technical challenges.

Customization Process

In many specialized machining applications, standardized electric spindles may not fully meet your process requirements—whether it's for unique installation dimensions, specific power and torque curves, or demanding operating environments.
WHD (Shuntongwenhua Motor), with its strong R&D team and over thirty years of technical expertise, offers comprehensive electric spindle customization services. Our goal is to create personalized designs based on our customers' actual needs, transforming your unique ideas into high-performance, real-world products.

Needs Communication and Analysis
Technical Solution Design and Confirmation
Component Sourcing and Precision Manufacturing
Assembly and Performance Testing
Delivery and Technical Support

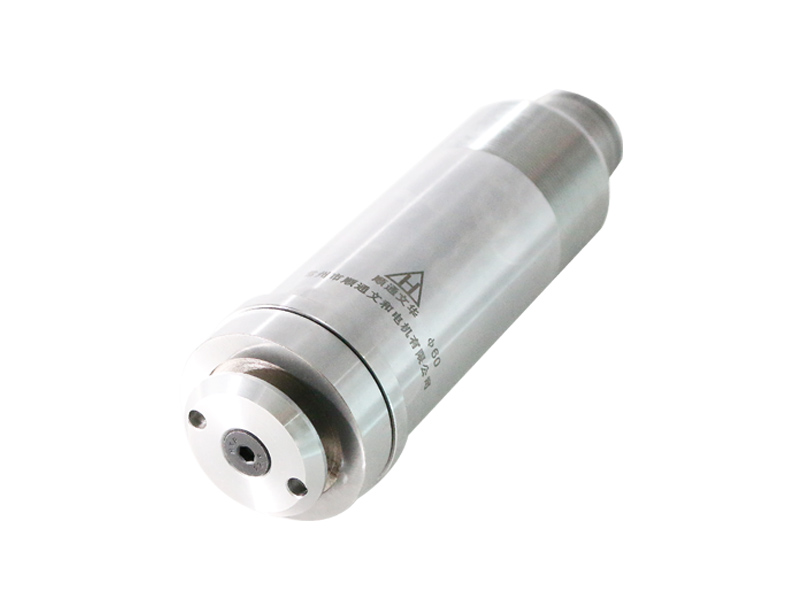

Spindle Motor Customized——Customizable Range

No matter how unique your needs are, our professional team is dedicated to providing you with a customized high-speed electric spindle solution, helping your machining process achieve optimal performance!

Power & Torque Curve
Torque Characteristics: Adjust the torque output across low, medium, and high-speed ranges to optimize performance for specific machining stages.
Power Curve Shape: Customize the curve of how power changes with spindle speed to match your ideal cutting speed range.
01
Speed Range
Maximum Speed: Customize the required maximum speed based on your tool type and the material being machined.
Speed Accuracy: Customize the required precision of the speed control to ensure machining quality.
02
Bearing Type & Configuration
Bearing Brand: Select high-precision bearings from a specific brand (e.g., SKF, FAG, NSK).
Bearing Material: Choose between steel ball or ceramic ball bearings to suit different speed and lifespan requirements.
Bearing Number & Arrangement: Customize the number and arrangement of bearings based on load and rigidity requirements.
03
Tool Interface Type
Standard Interface: Select a common tool holder interface standard, such as ISO, BT, HSK, or CAT.
Special Interface: Customize a non-standard interface based on your specific tool holder or fixture needs.
Interface Size: Choose an interface specification that is suitable for your tool size and clamping force.
04
Installation Dimensions & Interfaces
Outer Dimensions: Customize the spindle's length, diameter, flange size, etc., to fit the installation space of your equipment.
Mounting Method: Customize the flange type, screw hole positions, and quantity.
Electrical Interface: Customize the type and location of the power, control signal, and encoder interfaces.
Coolant Interface: Customize the position, size, and connection method of the coolant inlet and outlet.
05
Adaptability to Special Working Conditions
Dustproof & Waterproof
High/Low Temperature Resistance
Corrosion Resistance
06
Cooling Method
Water Cooling
Air Cooling
07
Adaptability to Special Working Conditions
Dustproof & Waterproof
High/Low Temperature Resistance
Corrosion Resistance
08
