Air Cooled Spindle Motor

WHD supplies kinds of High Speed Air Cooled Spindle Motor for CNC engraving and CNC wood routing,including Round CNC Spindle Motor, Square CNC Spindle Motor, CNC Spindle Motor with Flange, for your any applications of routing and engraving.

With over 20 years’ experience of producing and selling spindle motors, WHD spindle motors have been exported to USA, Europe,Brazil, India, Russia etc. all over the world.

Looking forward to cooperating with you soon.

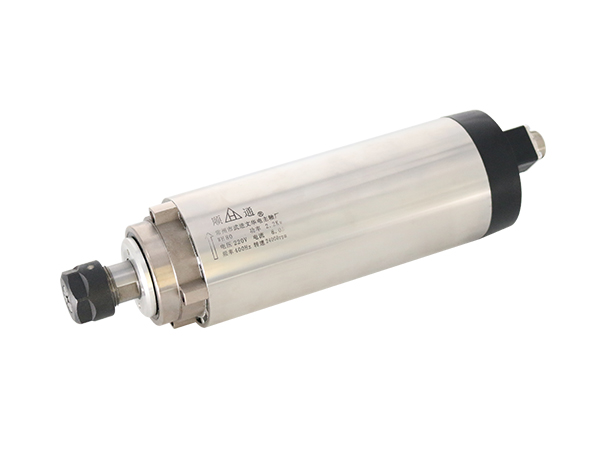

Round Spindle Motor 2.2kw

Model STF80-2.2
Power 2.2kW
Diameter φ80mm
Speed 24000rpm
Voltage 220V
Current 8.0A
Frequency 400Hz
Joint of nose ER20(φ3.175-φ13)
Collet nut 3.175mm, 4mm,6mm,12.7mm
Cool Air cooling
Lub Grease
Phase 3
Torque 0.85Nm
Thermal class F
Protection class IP50
Weight 4.8KG
Warranty Bearings for half a year, other parts for one year

Round Air Cooled Spindle Motor More Specifications:

Type No.

Product Data

Joint of Nose


0.8 kw, 220V, 400 Hz, 24000 RPM

ER 11


1.5 kw, 220V, 400 Hz, 24000 RPM

ER 11


2.2 kw, 220V, 400 Hz, 24000 RPM

ER 20

WHD is the leading manufacturer and supplier of Round 2.2 KW Air Cooled Spindle Motor.


· Woodworking

· Plastic Acrylic

Additional Information:

· Payment Terms: T/T

· Port of loading: Shanghai,China

· Package: Foam Box in Carton Box with Strong Strips across Carton Box.

Download attachments: Round Spindle Motor 2.2kw
